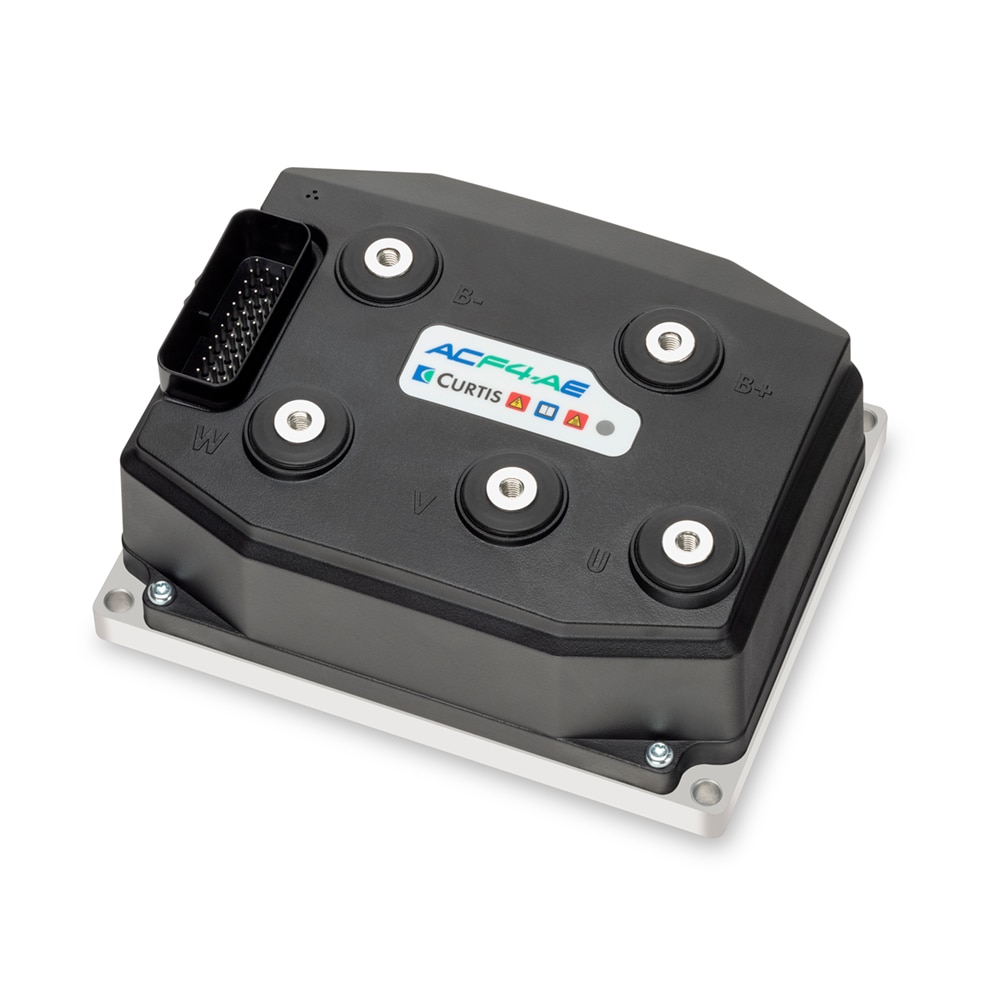

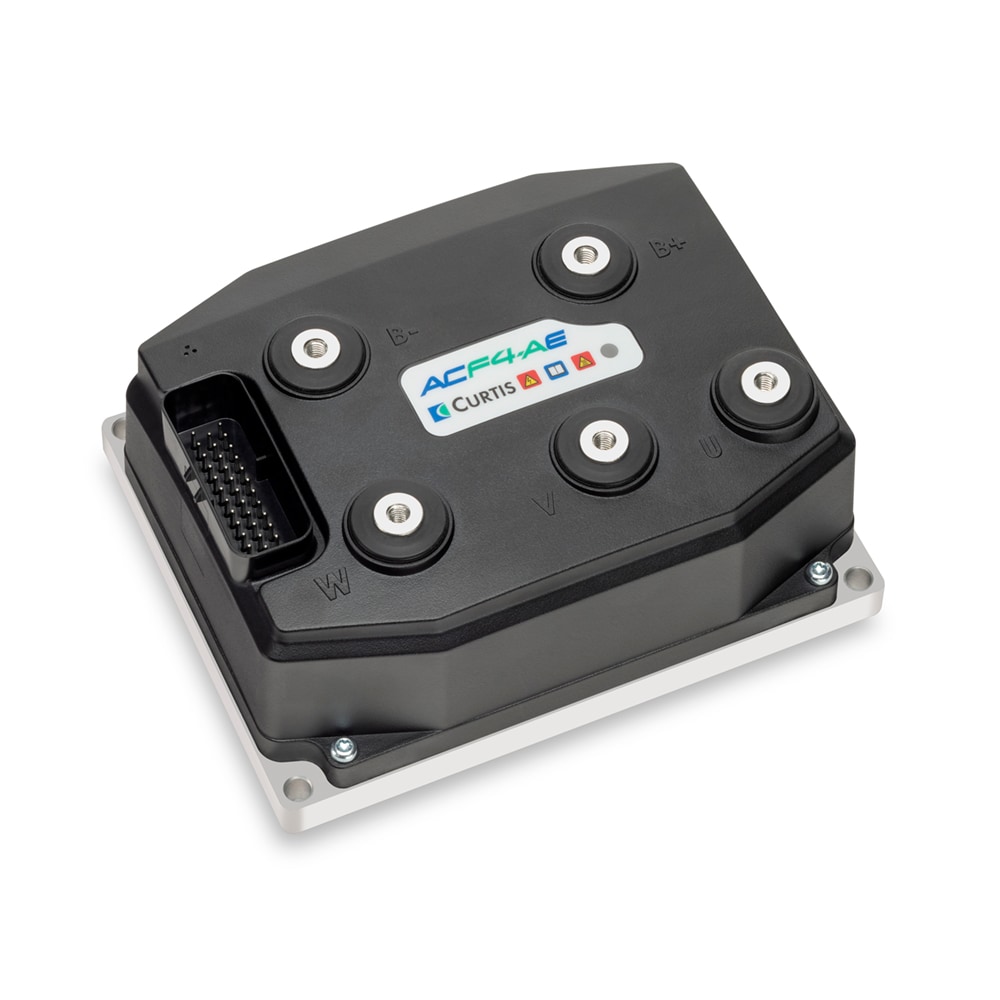

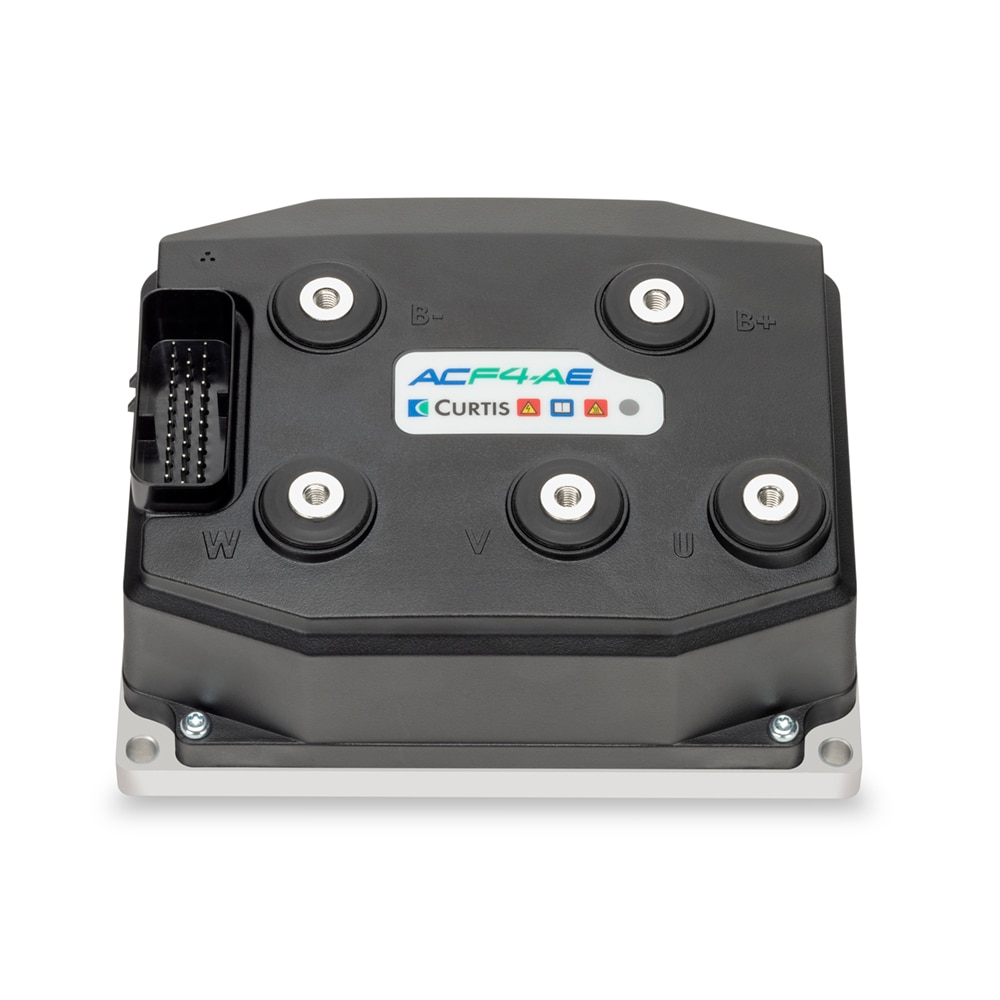

Curtis AC Motor Controller - AC F4-AE
The Curtis AC F4-AE motor controller delivers precise speed and torque control for AC induction, PMAC, and BLDC motors, enabling efficient performance and simplified integration for golf carts, MPVs, auto rickshaws, and motorbikes.
SERIES OVERVIEW
Curtis AC Motor Controller - AC F4-AE
The Curtis AC F4-AE motor controller delivers precise speed and torque control for AC induction, PMAC, and BLDC motors, enabling efficient performance and simplified integration for golf carts, MPVs, auto rickshaws, and motorbikes.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 2
- 图片与资料
- 4
系列介绍
产品能力与选型说明
Control of AC induction, PMAC, and BLDC motors
Field-oriented motor control for smooth, efficient performance
Dual ARM Cortex microprocessors with category 2 functional safety
Integrated Vehicle Control Language (VCL) reduces need for additional controllers
Flexible, configurable I/O with mappable inputs and outputs
CANopen-compliant communication with J1939 support
Compatible with multiple motor position sensor technologies
Configurable battery protection and lithium-ion battery compatibility
Advanced diagnostics, fault logging, and CAN-based programming
Compact IP67-rated design for demanding environments
Light electric vehicles
Personal transportation vehicles
Urban mobility vehicles
Agriculture equipment
Turf equipment
Industrial utility vehicles
Specialty electric vehicles
Golf carts
Multi-person vehicles (MPVs)
Auto rickshaws
Electric motorbikes
Light utility vehicles
Compact electric transportation platforms
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Curtis
产品序列F-Series
输入电压36-48 V
输出电流额定值400 Arms
工作温度–40 to 50 °C
存储温度–40 to 85 °C
防护等级IP67
频次10 nominal (configurable) kHz
符合规格EN 12895, EN ISO 13849, ECE R10
电机类型AC Induction, PMAC, BLDC
外框尺寸142 x 182 x 75 mm
通讯接口CANopen or J1939
具体产品
型号与订货号
共 2 条产品记录。独立型号尚未确认的产品可按订货号查询。
Curtis AC Motor Controller - AC F4-AE · AC F4-AE 48-300-XXX独立型号待确认订货号：AC F4-AE 48-300-XXX零件号代用查看产品 →
Curtis AC Motor Controller - AC F4-AE · AC F4-AE 48-400-XXX独立型号待确认订货号：AC F4-AE 48-400-XXX零件号代用查看产品 →
