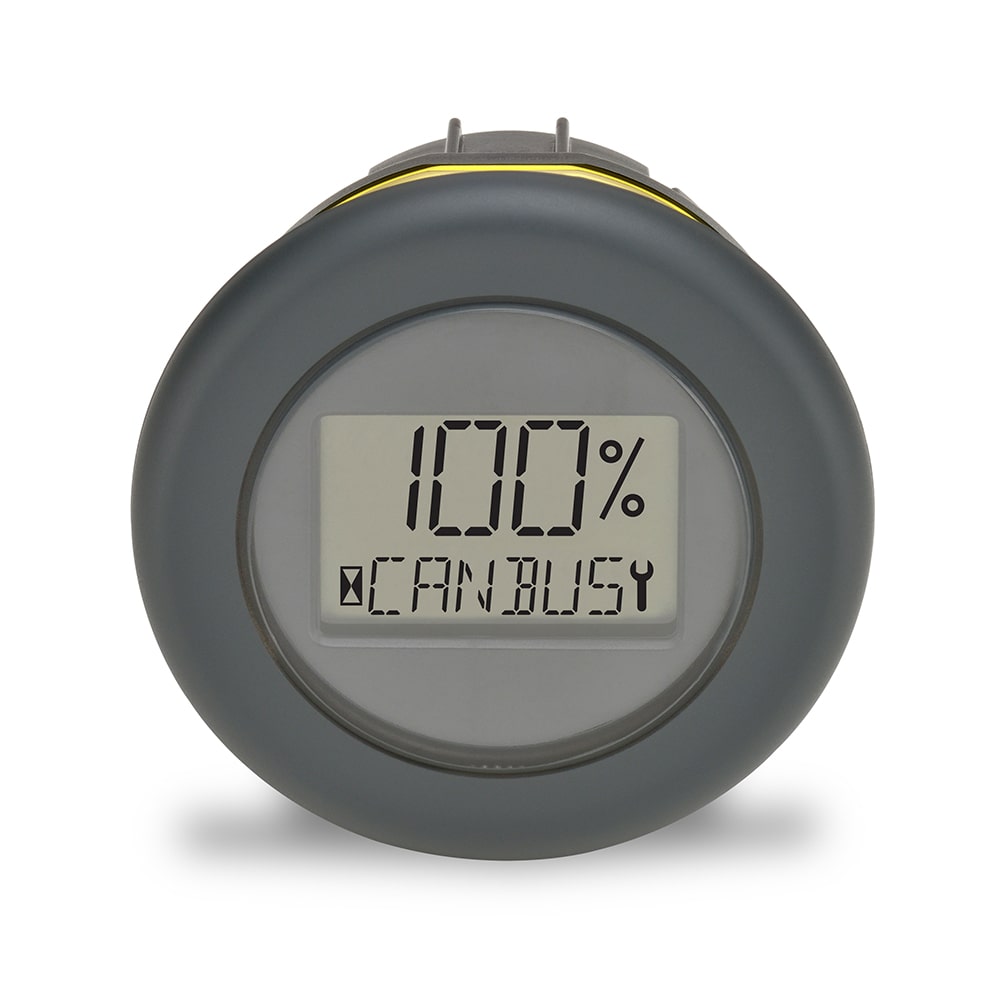

Curtis Models 3140 and 3141 Display
The Curtis 3140 and 3141 CAN displays delivers clear vehicle status, battery monitoring, and diagnostics in a compact 52 mm instrument, simplifying CAN-based system integration for industrial and off-highway vehicles.
SERIES OVERVIEW
Curtis Models 3140 and 3141 Display
The Curtis 3140 and 3141 CAN displays delivers clear vehicle status, battery monitoring, and diagnostics in a compact 52 mm instrument, simplifying CAN-based system integration for industrial and off-highway vehicles.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 4
- 图片与资料
- 2
系列介绍
产品能力与选型说明
Compact 52 mm CAN display for vehicle monitoring and diagnostics
Compatible with Curtis F2-A and other CANopen motor controllers
Displays battery state-of-charge, operating status, diagnostics, and system messages
High-contrast transflective LCD with alphanumeric characters and status symbols
Model 3141 includes three programmable CAN-controlled LED status indicators
Optional backlighting and LCD heater for low-light and cold-storage applications
Supports seven selectable CAN baud rates from 20 kbps to 1 Mbps
Optional integrated CAN termination resistor for flexible vehicle integration
Industry-standard 52 mm panel cutout for easy installation
Available in IP65/IP54 and fully sealed IP67 configurations
Material handling
Construction equipment
Aerial work platforms
Commercial cleaning equipment
Agriculture and turf equipment
Industrial and specialty electric vehicles
Vehicle instrumentation
Battery state-of-charge monitoring
Vehicle diagnostics and fault indication
Operator status displays
CAN-based vehicle control systems
Electric and hybrid industrial vehicles
CHINA.SOCIALTEAM@PARKER.COM
公司信息
关于我们
技术博客
投资人
社区
人才招募
公司新闻
与派克建立合作
产品品牌
全球运营
分部
销售公司
全球分布
帮助与支持
CAD 文件
申请产品样本
参照检索
购买渠道
沪ICP备16020126号
沪公网安备：31011502007480
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
分部Electronic Controls and Motion Division
品牌Curtis
显示屏类型LCD
通讯接口CANopen
额定电池电压12 V, 24-48 V
符合规格UL 583, EN 60068-2-6,
Connection StyleAMP MATE-N-LOK
具体产品
型号与订货号
共 4 条产品记录。独立型号尚未确认的产品可按订货号查询。
产品资料
图片、文档与 CAD
共 2 项资料。已归档文件可直接打开；仅有官网入口的资料会标注“官网链接”。
产品图片 · 本地资料Thumbnail 2工程资源
