产品系列

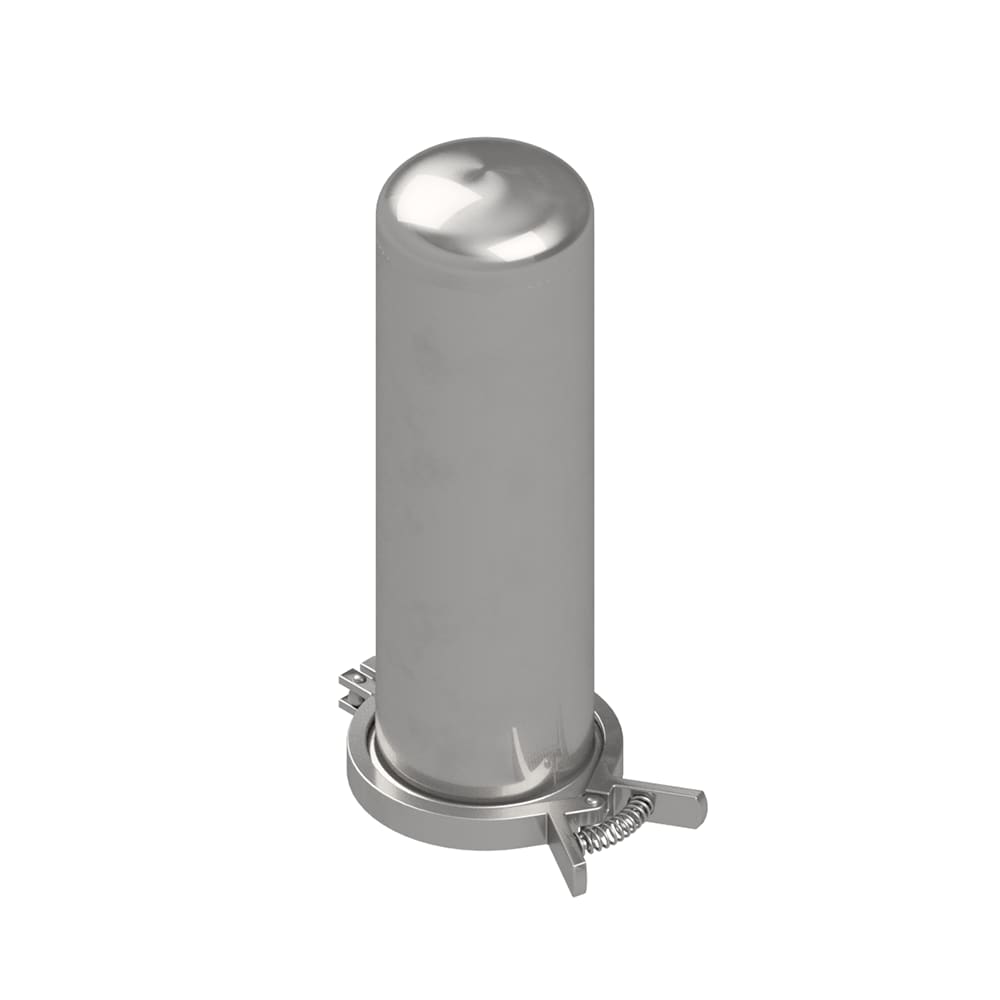

HVF Tank Vent Housings
The HVF range is specifically designed for food and beverage applications that require filtration of tank air to atmosphere.
SERIES OVERVIEW
HVF Tank Vent Housings
The HVF range is specifically designed for food and beverage applications that require filtration of tank air to atmosphere.
- 系列编号
- —
- 所属技术
- 过滤技术
- 产品记录
- 6
- 图片与资料
- 2
系列介绍
产品能力与选型说明
• Atmospheric vent filter housing for filtration of tank air • Designed for the food and beverage industry • Easy handling with light bowl Application and Availability The HVF range is specifically designed for food and beverage applications that require filtration of thank air to atmosphere. HVF accepts Parker’s full range of C-Style (226) gas filter cartridges with nominal lengths 5”, 10” and 20”. Suitable for the following applications • Beer • Wine • Bottled water • Food processing • Dairy Documentation Each filter housing is supplied as standard with EU Declaration, Material Certification, Surface Finish Certification and IOMI.
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
品牌Parker
分部Bioscience and Water Filtration Division
行业Food and Beverage
应用Vent Filtration
技术Filtration
产品类型Filter Vessel
产品序列HVF Housings
产品风格Single
工作压力Atmospheric
与流体类型共同使用Gas
符合规格ATEX 2014/34/EU
结构材料316L Stainless Steel (Wetted Surfaces)
管壳长度5 inch, 10 inch, 20 inch
配置C-Style Socket (226/Fin)
闭锁类型Clamp
表面处理Base Internal: 0.8μm Ra Mechanical polish + Electropolish, Dome Internal: Pickled, External: 0.4μm Ra Mechanical polish + Chemical clean
连接类型Tri-Clamp®
连接尺寸1.5 inch, 2.0 inch
