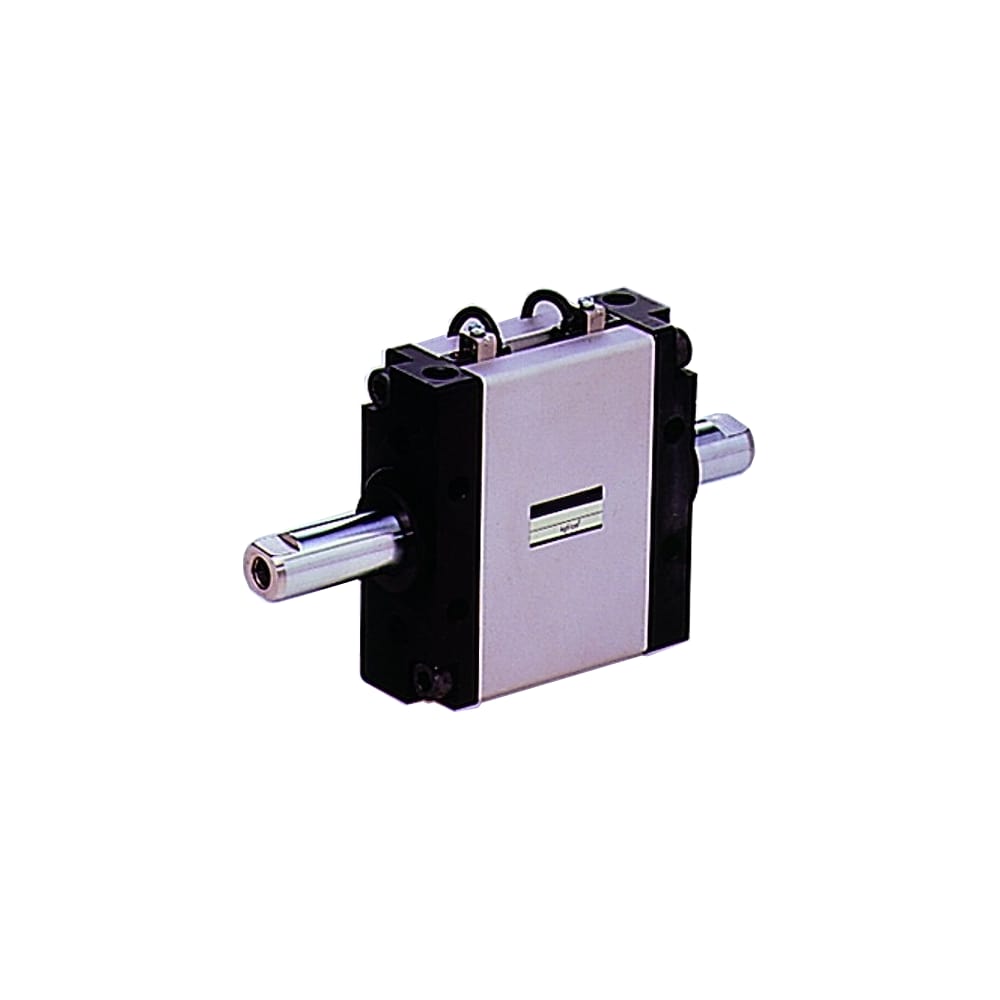

Flat Cylinder Model:10F-2
Thin type flat cylinder 10F-2 series is ideal for use at narrow space by narrowing width of cylinder with piston shaped oval. The switch is a system-up type that allows you to install a magnetic proximity switch later.
SERIES OVERVIEW
Flat Cylinder Model:10F-2
Thin type flat cylinder 10F-2 series is ideal for use at narrow space by narrowing width of cylinder with piston shaped oval. The switch is a system-up type that allows you to install a magnetic proximity switch later.
- 系列编号
- —
- 所属技术
- 液压技术
- 产品记录
- 4
- 图片与资料
- 1
系列介绍
产品能力与选型说明
The 10F-2 series is a thin type flat cylinder that has an oval piston to reduce the cylinder width and is ideal for use in narrow spaces. By making the piston oval, it is possible to prevent rotation and save space. The magnetic proximity type switch adopts a highly reliable 2-wire 2-lamp type, which makes it easy to set the optimum position of the switch and prevents troubles in advance. Markets: ・General Industry ・Transportation ・Machine Tools ・Automotive Applications: ・General industry ・Factory Automation ・Machine tools ・Conveyance ・Assembly Features/Benefits: ・The cylinder width is significantly smaller than that of a normal cylinder. ・Since the piston is oval, it contributes to the prevention of rod rotation. ・The switch is a system-up type that can be installed later. ・There are a total of 10 mounting screws on the cover surface, allowing for a variety of mounting to suit your needs.
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
精确性Backlash accuracy: φ25 or equivalent:±1.0°φ32 or equivalent:±0.8°φ50 or equivalent:±0.5°, ± 0.8 ° (φ32 or Equivalent), ± 0.5 ° (φ50 or Equivalent)
孔径φ25 or equivalent,φ32 or equivalent,φ50 or equivalent, 32 mm or Equivalent, 50 mm or Equivalent
与流体类型共同使用Air
润滑剂Unnecessary(But possible)
额定压力0.1 to 1MPa MPa
可承受压力1.5MPa MPa
运行速度50 to 500mm/s mm/sec
工作温度-10 to +60℃(No freezing) °C
缓冲类型With cushion pads on both ends
螺纹公差JIS 6H/6g
冲程公差0 to +1.0mm mm
阀体材料Aluminum alloy
允许的旋转扭矩φ25 or equivalent:0.981N･m φ32 or equivalent:1.57N･m φ50 or equivalent:3.92N･m, 1.57 Nm (φ32 or Equivalent), 3.92 Nm (φ50 or Equivalent)
安装类型SD,LB,FA,FB,CA,CB, LB, FA, FB, CA, CB
杆端螺纹类型Female thread and male thread, Female
杆端类型･Rod eye(T-end)･Rod clevis(Y-end)with pin, Rod Clevis (Y-end) with Pin
