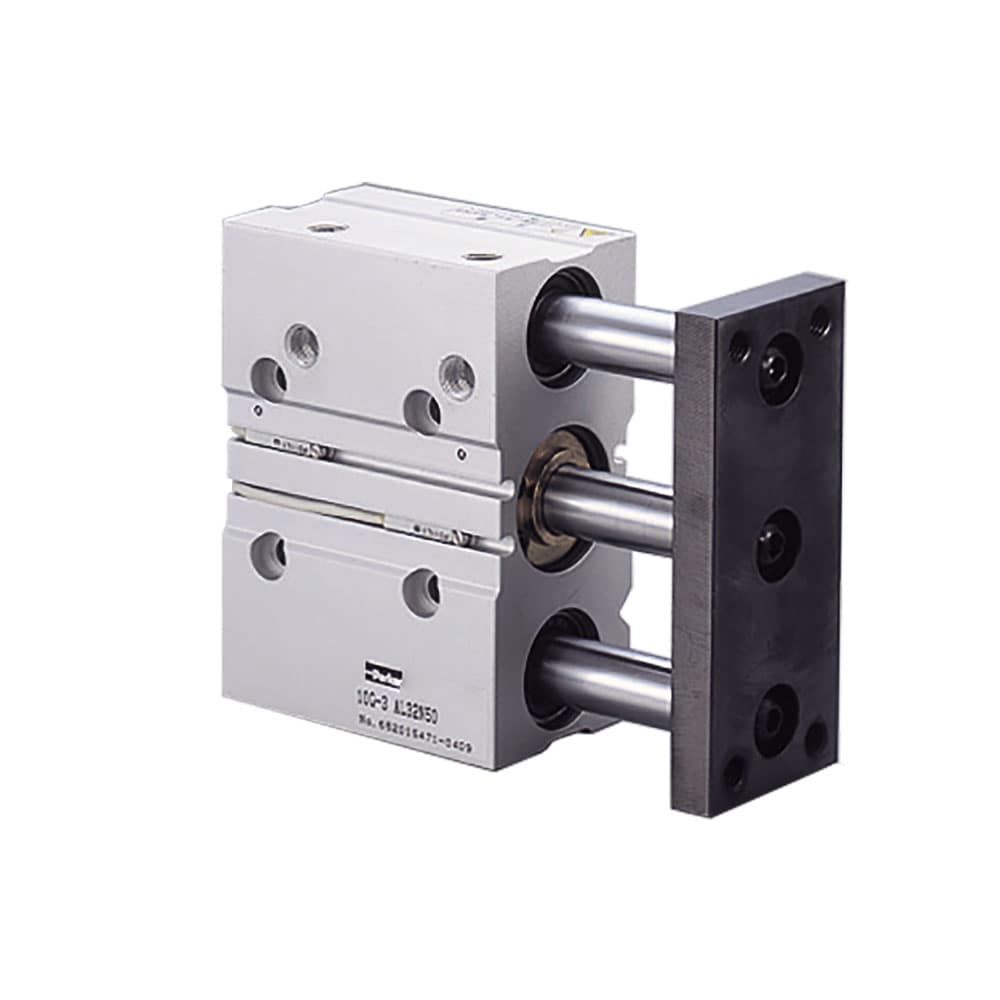

Small-size Compact Design Pneumatic Cylinder with Guide Model:10G-3

The 10G-3 series is a compact guided cylinder with bore size of φ12 to φ32. The cylinder body has two switch grooves on the front and back. You can select from 16 types of switches according to your application. Piping ports are located on the surface and sides of the body and can be piped from 2 directions. Markets: ・General Industry ・Transportation ・Machine Tools ・Automotive Applications: ・General Industry ・Factory Automation ・Machine Tools ・Conveyance ・Assembly Features/Benefits: ・Standard pallet is up to 200mm. ・There are 2 types of bearings plain bearings and linear bush bearings. ・There are 2 piping ports, one on the surface of the main body and the other on the side. ・There are 2 types of mounting holes on the front, bottom, and back with different pitch widths. ・The switch can be selected from 16 types according to the application.
