产品系列
涂胶枪
Portable conductive adhesive and sealant dispense guns are ideal for touch ups or low volume assembly work.
SERIES OVERVIEW
涂胶枪
Portable conductive adhesive and sealant dispense guns are ideal for touch ups or low volume assembly work.
- 系列编号
- —
- 所属技术
- 密封技术
- 产品记录
- 3
- 图片与资料
- 6
系列介绍
产品能力与选型说明

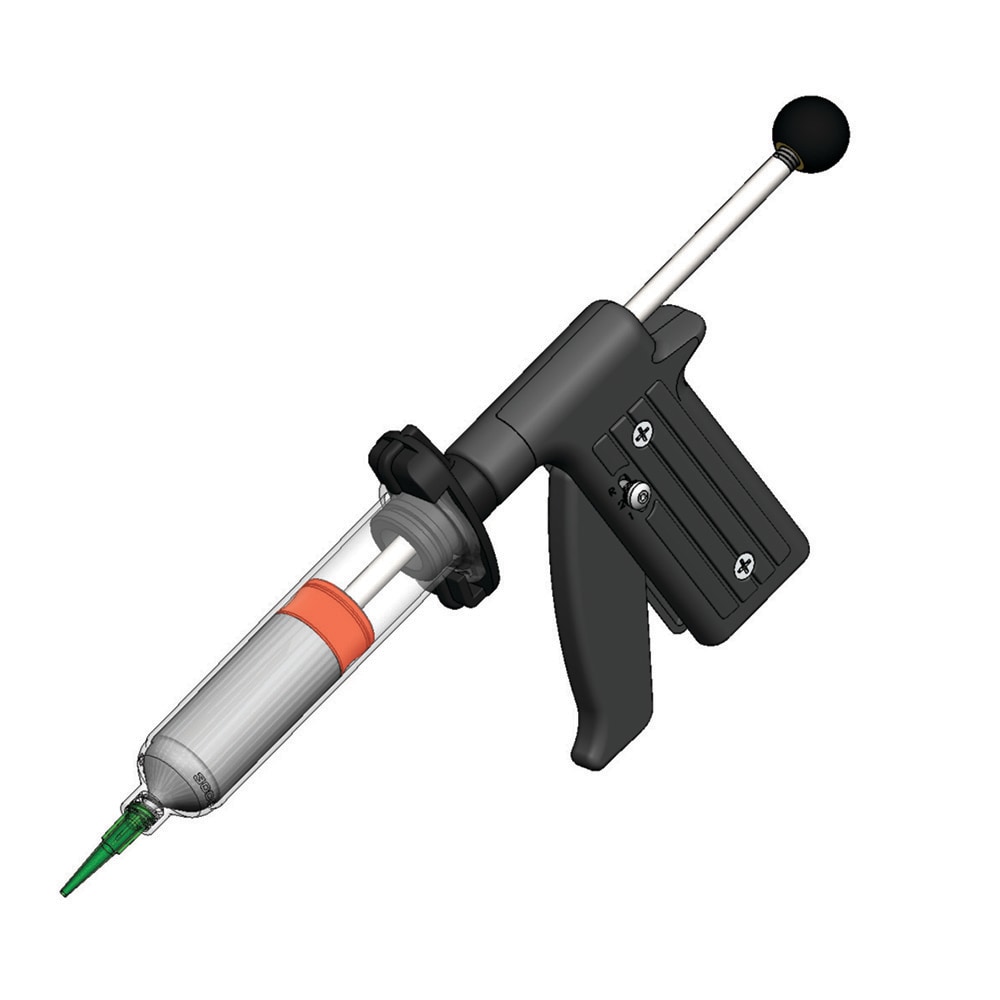

Ideal for touch ups or low volume assembly or prototyping work, these portable fluid dispense guns made by Nordson EFD are designed to be used in conjunction with Parker Chomerics conductive sealants and adhesives packaged in EFD syringe barrels, pistons and tips.
Portable dispense guns are necessary with Parker Chomerics PRO-SHIELD® conductive sealants and adhesives for dispensing an accurate bead, making qualification testing and prototyping faster and easier. 55cc 1 Part Dispense Gun 10:1 Leverage Features: • Nordson EFD DispensGun 7023141 with 10 to one leverage • Works with PRO-SHIELD Electrically Conductive Sealants 90-05-7001-0000, 90-05-7002-0000 and 90-05-7008-0000 • 55cc version • Ergonomic design • Fatigue-free dispensing of thick fluids • Positive shutoff, no dripping • Simplified maintenance • Reusable
30cc 1 Part Gun 1:1 Leverage Features: • Nordson EFD Manual Dispense Gun 7704342 with one to one leverage • Works with PRO-SHIELD Electrically Conductive Sealants (part numbers 90-05-7001-0000, 90-05-7002-0000 and 90-05-7008-0000) • Works with THERM-A-GAP Thermally Conductive GELs in 30cc EFD Syringes (part numbers 65-02-T630-0030, 65-02-T635-0030, 65-02-GEL30-0030, 65-02-GEL45-0030, 65-02-GEL8010-0030 and 65-02-TC50-0030) • Works with THERM-A-GAP Thermally Conductive GELs in 30cc Tapered Tip Syringes (part numbers 65-00-T630-0030, 65-00-T635-0030, 65-00-T636-0030, 65-00-GEL30-0030, 65-00-GEL45-0030, 65-00-GEL8010-0030 and 65-00-TC50-0030) • Comfortable handle • Ideal for prototyping or touch ups • Simplified maintenance • Reusable • Cost effective
50cc 2 Part Gun 2:1 Leverage Features: • Nordson 2K 50mL Manual Cartridge Dispensers 7703045 (D-104) with one to one leverage • Works with PRO-SHIELD 7058 Electrically Conductive Adhesive (part number 90-05-7058-0000) • 4:1 mix plunger • Comfortable handle • Ideal for prototyping or touch ups • Simplified maintenance • Reusable • Cost effective
6oz 1 Part Gun 1:1 Leverage Features: • Nordson EFD Dispenser Portable 6oz 7360248 • Works with PRO-SHIELD Electrically Conductive Sealants 90-01-7001-0000, 90-01-7002-0000 and 90-01-7008-0000 • Comfortable handle • Ideal for prototyping or touch ups • Simplified maintenance • Reusable • Cost effective
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
OEM 代码7023141, 7704342, 7360248, 7704342, 7360248
品牌Nordson EFD DispensGun, Nordson EFD
