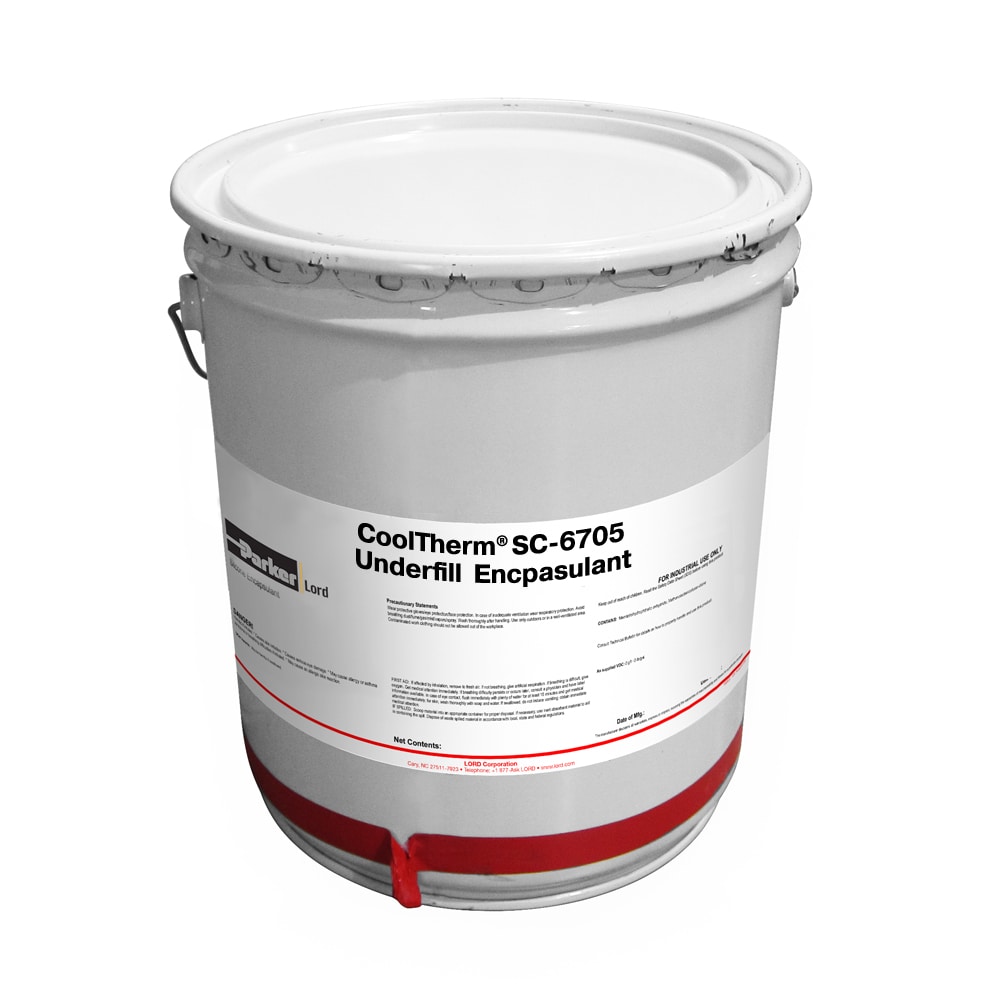

CoolTherm® SC-6705 Silicone Encapsulant

CoolTherm® SC-6705 encapsulant is a two-component, addition-cure silicone system for use in applications where high temperature service and a flexible system are required.

CoolTherm® SC-6705 Silicone Encapsulant
当前系列CoolTherm® SC-6705 Silicone Encapsulant

SERIES OVERVIEW

CoolTherm® SC-6705 Silicone Encapsulant

CoolTherm® SC-6705 encapsulant is a two-component, addition-cure silicone system for use in applications where high temperature service and a flexible system are required.

系列编号
所属技术
密封技术
产品记录
1
图片与资料
8

系列介绍

产品能力与选型说明

CoolTherm® SC-6705 encapsulant is a two-component, addition-cure silicone system for use in applications where high temperature service and a flexible system are required. Features and Benefits: • Low Viscosity – maintains low viscosity for complete and void-free encapsulation. • Broad Temperature Range – can be used on parts and devices that experience operating temperatures from -55°C to +205°C. • Reversion Resistant – provides excellent reversion resistance at high temperatures; will not cause corrosion. • UL Rated – provides excellent flame retardancy; UL 94 V-0 certified. Shelf Life/Storage: Shelf life of each component is six months when stored at 25°C in original, unopened container.

SELECTION PATH

从工况到型号,一步步缩小选择范围

结合现场参数、安装边界和交付要求,确认适合的系列与型号。

01

明确应用工况

整理介质、压力、温度、速度与使用环境等基础条件。

02

确认安装边界

核对空间、接口、连接方式与现有系统的兼容性。

03

匹配技术参数

结合性能、材料、寿命与合规要求进行综合比较。

04

确认型号与交付

核对完整型号、数量、资料和交期,形成可执行方案。

技术参数

关键规格一览

颜色Black Liquid (resin), Off-White Liquid (hardener), Black Liquid (mixed)
动态粘度3000 cP @ 25°C (resin), 2900 cP @ 25°C (hardener), 2500 cP @ 25°C (mixed)
Number of ComponentsTwo-Component (2K)
Hardness60 Shore A
Cure Time2 Hours @ 65°C, 24 Hours @25°C
Working Time1 to 2 Hours @ 25°C
热导性0.35 W/m-K
介电强度17.7 kV/mm, 450 V/mil

具体产品

型号与订货号

1 条产品记录。独立型号尚未确认的产品可按订货号查询。

产品名称型号 / 订货号资料
CoolTherm® SC-6705 Silicone Encapsulant · CoolTherm SC-6705独立型号待确认订货号:CoolTherm SC-6705零件号代用查看产品 →
