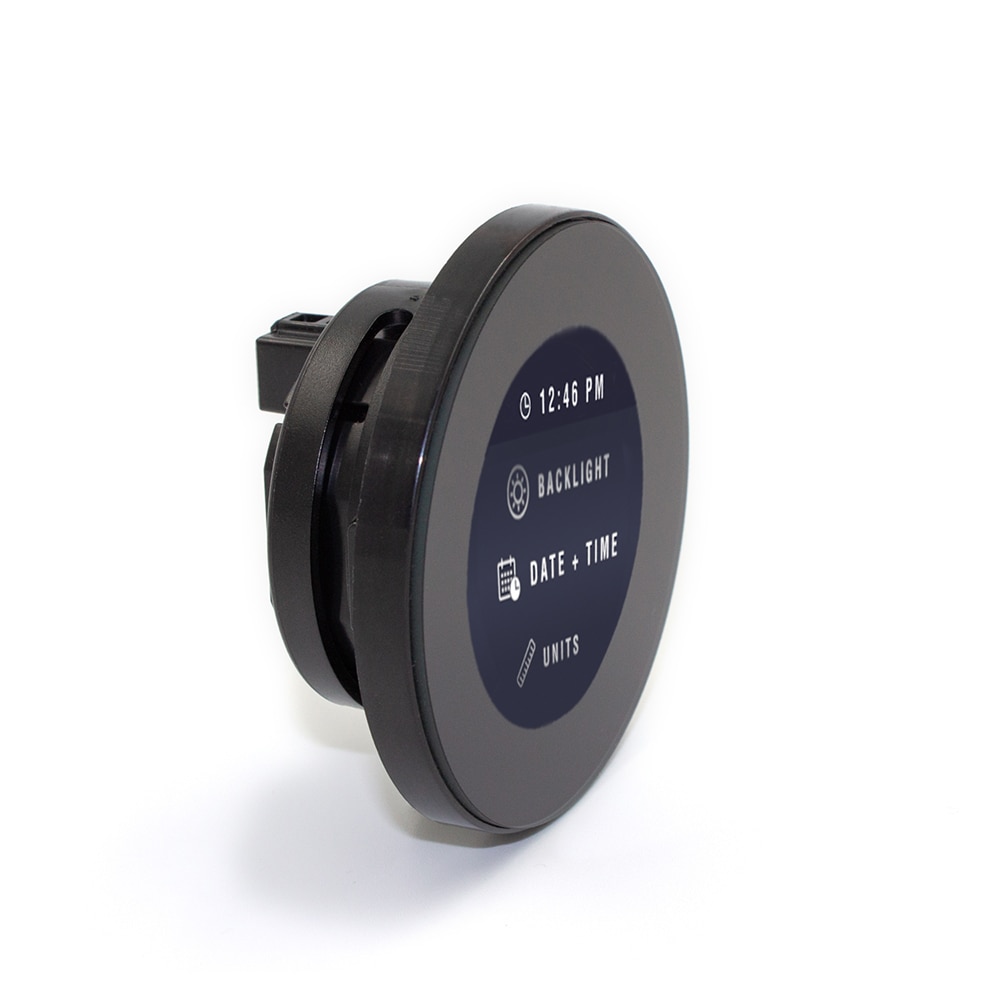

Curtis Display Module - NX II
The Curtis enGage® NX 2 (3250R) is a compact 2.1-inch color touchscreen display for off-road vehicles, featuring CAN-FD connectivity, OEM customizable UI, and optional Bluetooth, wireless, & RFID for clear machine data visualization.
SERIES OVERVIEW
Curtis Display Module - NX II
The Curtis enGage® NX 2 (3250R) is a compact 2.1-inch color touchscreen display for off-road vehicles, featuring CAN-FD connectivity, OEM customizable UI, and optional Bluetooth, wireless, & RFID for clear machine data visualization.
- 系列编号
- —
- 所属技术
- 机电技术
- 产品记录
- 2
- 图片与资料
- 5
系列介绍
产品能力与选型说明
2.1-inch color capacitive touchscreen with 480 × 480 pixel resolution.
Bright, optically bonded LCD for excellent visibility in all lighting conditions.
Compact 52 mm gauge form factor for easy panel integration.
Fully customizable user interface for machine data visualization and OEM branding.
CAN-FD communication with J1939 and CANopen support and backward compatibility to CAN 2.0.
Optional Bluetooth and Wi-Fi for mobile apps, telematics, and data connectivity.
Optional RFID/NFC for operator identification and vehicle security.
Integrated battery discharge indicator (BDI) and hour meter.
One analog input and one digital input for external device connection.
Wide operating voltage range from 12 to 48 VDC.
IP67 front and rear ingress protection for harsh environments.
Designed to meet global EMC, safety, and environmental standards.
Material handling
Construction equipment
Industrial vehicles
Utility vehicles
Golf/Recreation>
Agriculture>
Specialty electric vehicles
Off-highway and mobile equipment
Forklifts and warehouse trucks
Utility and personnel carriers
Golf and Turf equipment
Compact construction and industrial machines
Electrified specialty vehicles
Operator displays for electric and hybrid mobile equipment
SELECTION PATH
从工况到型号，一步步缩小选择范围
结合现场参数、安装边界和交付要求，确认适合的系列与型号。
确认安装边界
核对空间、接口、连接方式与现有系统的兼容性。
匹配技术参数
结合性能、材料、寿命与合规要求进行综合比较。
确认型号与交付
核对完整型号、数量、资料和交期，形成可执行方案。
技术参数
关键规格一览
显示屏尺寸2.1 inch
显示屏类型Bright, optically bonded, LCD touch screen
分辨率480 x 480 pixels (max)
输入数量2
电源电压12 to 48 V
运行电流40 to 75 (at 24V) mA

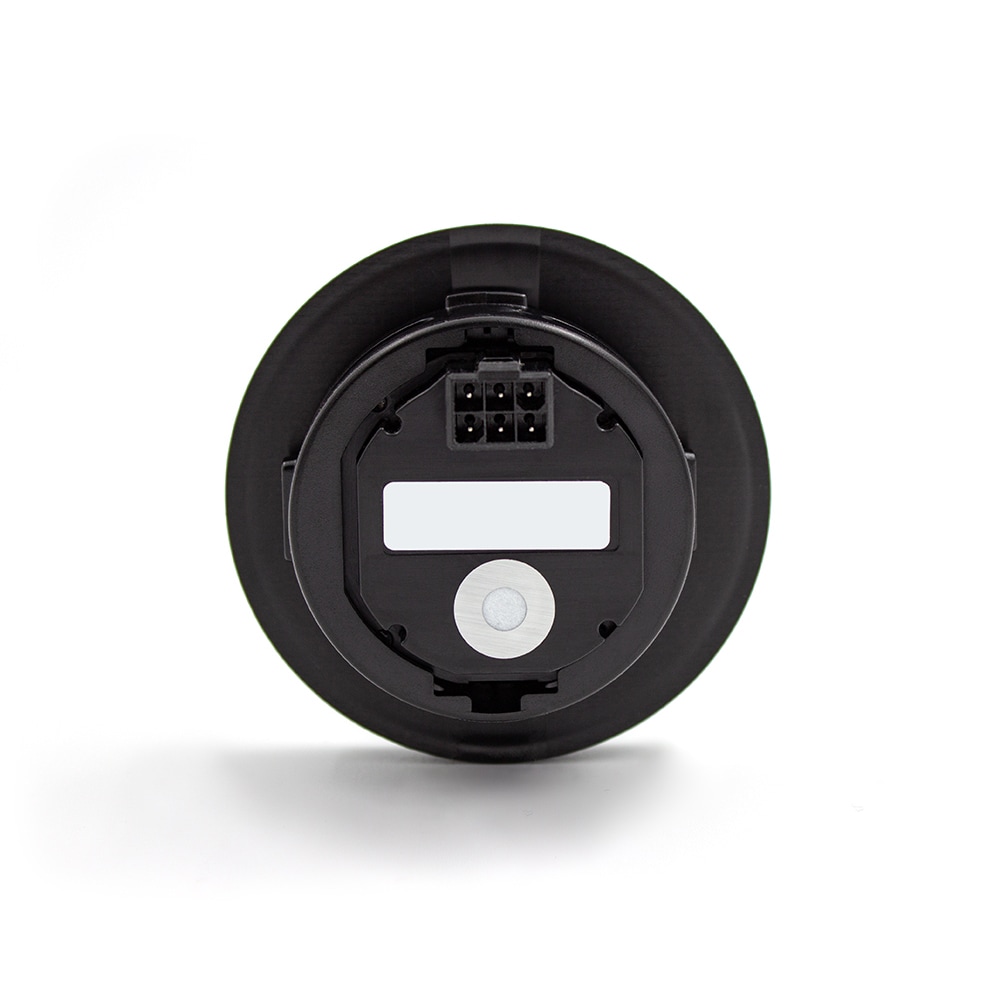

电气连接6-pin Mini-Universal MATE-N-LOK
工作温度70 to -30 °C
存储温度80 to -40 °C
符合规格EN 60068-2-78, EN 60068-2-30, EN 60068-2-27, EN 12895:2015+A1:2019, EN 12895:2020
防护等级IP67
